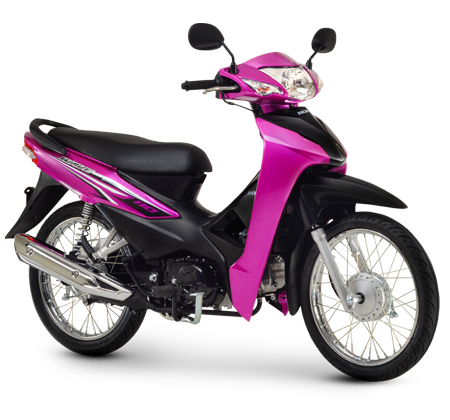

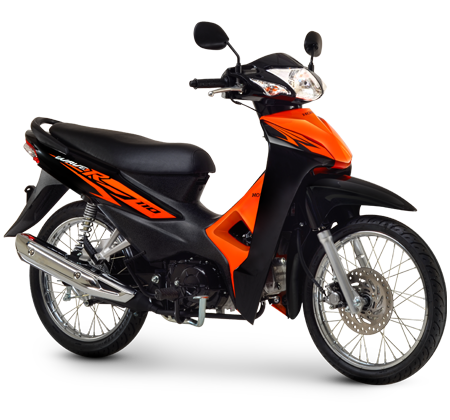

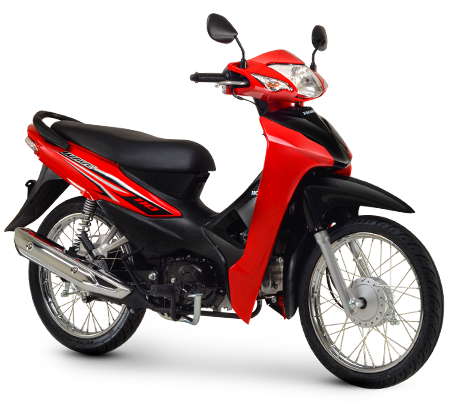

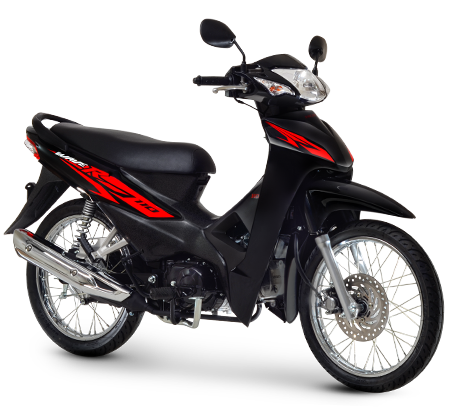

Wave 110R
Specifications
| Engine Specifications | |
|---|---|
| MAX POWER | 5.57 (7.57) @ 7,500 rpm |
| MAX TORQUE | 8.54 (0.87 kg+B218:E249f-m) @ 3,500 rpm |
| ENGINE TYPE | 4 Stroke, OHC, Air Cooled |
| BORE X STROKE | |
| ENGINE DISPLACEMENT | 109.17cc |
| COMPRESSION RATIO | |
| FUEL SYSTEM | |
| COOLING SYSTEM | |
| LUBRICATION | |
| STARTING | Electric & Kick |
| IGNITION SYSTEM | |
| ENGINE OIL | |
| TRANSMISSION TYPE | Semi-Manual |
| CLUTCH TYPE (PRIMARY) | Rotary ( N – 1 – 2 – 3 – 4 – N) |
| FUEL CONSUMPTION | |
| Chassis Specifications | |
|---|---|
| SUSPENSION (FRONT) | Telescopic |
| SUSPENSION (REAR) | Twin |
| TIRE SIZE (FRONT) | 70/90 – 17 M/C 38P |
| TIRE SIZE (REAR) | 80/90 – 17 M/C 50P |
| BRAKES (FRONT) | Mechanical Leading Trailing |
| BRAKES (REAR) | Mechanical Leading Trailing |
| FUEL TANK CAPACITY | 3.7 L |
| Dimensions | |
| OVERALL LENGTH | 1,914mm |
| OVERALL WIDTH | 688mm |
| OVERALL HEIGHT | 1,075mm |
| WHEELBASE | 1,224mm |
| GROUND / ROAD CLEARANCE | 142mm |
| CURB MASS | |
| SEAT HEIGHT | 769mm |
| DRY WEIGHT | 94 Kg |
