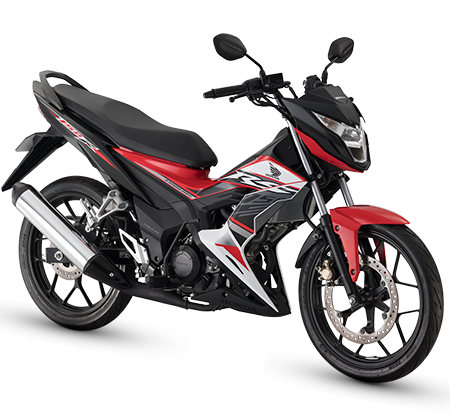

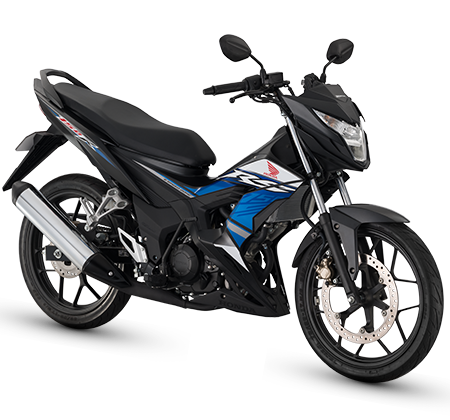

RS150R
Specifications
| Engine Specifications | |
|---|---|
| MAX POWER | 11.5 kW @ 9,000 rpm |
| MAX TORQUE | 13.5 N.m @ 6,500 rpm |
| ENGINE TYPE | 4 Stroke, 4 Valve DOHC, Liquid-Cooled |
| BORE X STROKE | |
| ENGINE DISPLACEMENT | 149.76 cc |
| COMPRESSION RATIO | |
| FUEL SYSTEM | |
| COOLING SYSTEM | |
| LUBRICATION | |
| STARTING | Electric & Kick |
| IGNITION SYSTEM | Full Transistorized |
| ENGINE OIL | 1.3 Liter Full (1.1 Liter exchange) |
| TRANSMISSION TYPE | 6-Speed Constant Mesh |
| CLUTCH TYPE (PRIMARY) | 6-Speed Constant Mesh |
| FUEL CONSUMPTION | |
| Chassis Specifications | |
|---|---|
| SUSPENSION (FRONT) | Telescopic |
| SUSPENSION (REAR) | Swing Arm – Monoshock |
| TIRE SIZE (FRONT) | 70/90 – 17 M/C 38P (Tubeless) |
| TIRE SIZE (REAR) | 80/90 – 17 M/C 50P (Tubeless) |
| BRAKES (FRONT) | Hydraulic Disc (0296 mm) |
| BRAKES (REAR) | Hydraulic Disc (0296 mm) |
| FUEL TANK CAPACITY | 4.3 Liters |
| Dimensions | |
| OVERALL LENGTH | 1,941 mm |
| OVERALL WIDTH | 699 mm |
| OVERALL HEIGHT | 977 mm |
| WHEELBASE |
1,275 mm
|
| GROUND / ROAD CLEARANCE | 140 mm |
| CURB MASS | |
| SEAT HEIGHT | 764 mm |
| DRY WEIGHT | 111 kg |
