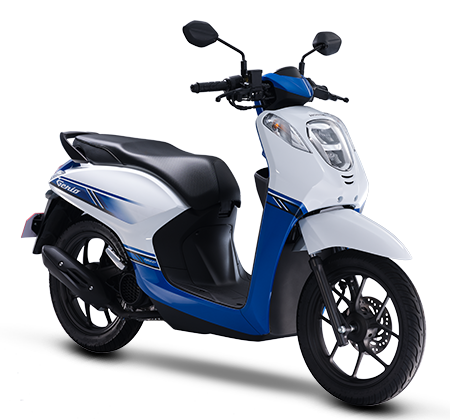

Genio
Specifications
| Engine Specifications | |
|---|---|
| MAX POWER | 6.6kW @ 7,500rpm |
| MAX TORQUE | 9.3N.m @ 5,500rpm |
| ENGINE TYPE | 4-stroke, Air-cooled, Single Overhead Cam (SOHC) |
| BORE X STROKE | 47.0 x 63.1 (mm) |
| ENGINE DISPLACEMENT | 110 cc |
| COMPRESSION RATIO | |
| FUEL SYSTEM | PGM-FI |
| COOLING SYSTEM | |
| LUBRICATION | |
| STARTING | ACG Starter |
| IGNITION SYSTEM | Full Transistorized |
| ENGINE OIL | |
| TRANSMISSION TYPE | Full Transistorized |
| CLUTCH TYPE (PRIMARY) | |
| FUEL CONSUMPTION | |
| Chassis Specifications | |
|---|---|
| SUSPENSION (FRONT) | Telescopic Fork |
| SUSPENSION (REAR) | Mono Shock – Unit Swing |
| TIRE SIZE (FRONT) | 80/90 – 14MC |
| TIRE SIZE (REAR) | 90/90 – 14MC |
| BRAKES (FRONT) | Hydraulic Disc Brake |
| BRAKES (REAR) | Mechanical Leading Trailing |
| FUEL TANK CAPACITY | 4.2 L |
| Dimensions | |
| OVERALL LENGTH | 1,869 |
| OVERALL WIDTH | 692 |
| OVERALL HEIGHT | 1,061 |
| WHEELBASE |
1,256 mm
|
| GROUND / ROAD CLEARANCE | 147 mm |
| CURB MASS | |
| SEAT HEIGHT | 740 mm |
| DRY WEIGHT | 86 Kg / 89 Kg |
