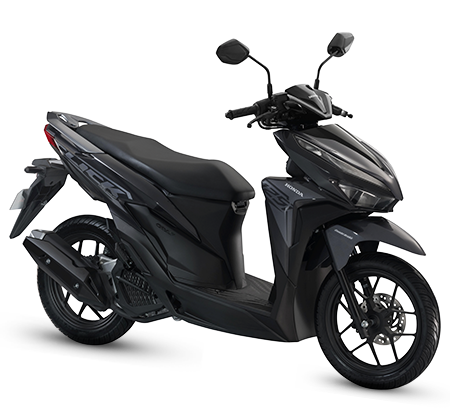

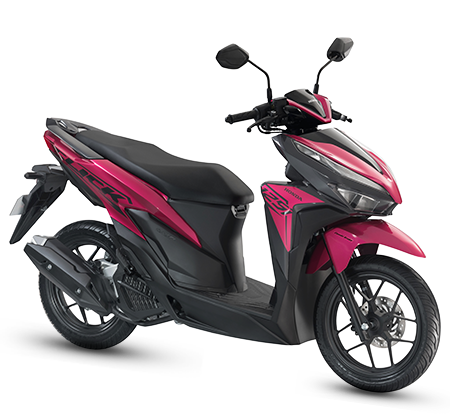

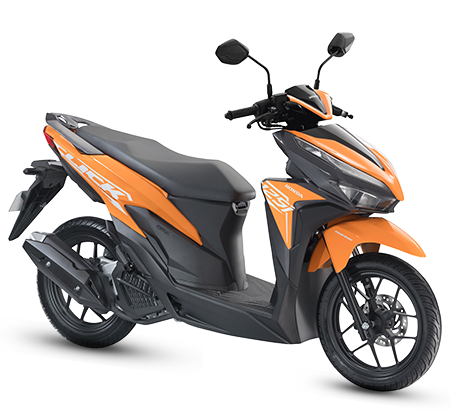

Click125i
Specifications
| Engine Specifications | |
|---|---|
| MAX POWER | 8.2 kW @ 8,500 rpm |
| MAX TORQUE | 10.8 N.m @ 5,000 rpm |
| ENGINE TYPE | 4 Stroke, SOHC, Liquid-Cooled, eSP |
| BORE X STROKE | 52.4 x 57.9 (mm) |
| ENGINE DISPLACEMENT | 125 cc |
| COMPRESSION RATIO | |
| FUEL SYSTEM | Fuel Injection |
| COOLING SYSTEM | |
| LUBRICATION | |
| STARTING | Electric / DECOMP |
| IGNITION SYSTEM | Full Transistorized |
| ENGINE OIL | |
| TRANSMISSION TYPE |
V-Belt Automatic
|
| CLUTCH TYPE (PRIMARY) | |
| FUEL CONSUMPTION | |
| Chassis Specifications | |
|---|---|
| SUSPENSION (FRONT) | Telescopic |
| SUSPENSION (REAR) | Unit Swing |
| TIRE SIZE (FRONT) | 80/90 – 14 M/C 40P |
| TIRE SIZE (REAR) | 90/90 – 14 M/C 46P |
| BRAKES (FRONT) | Hydraulic Disc |
| BRAKES (REAR) | Mechanical Leading Trailing |
| FUEL TANK CAPACITY | |
| Dimensions | |
| OVERALL LENGTH | 1,919 |
| OVERALL WIDTH | 679 |
| OVERALL HEIGHT | 1,062 mm |
| WHEELBASE |
1,280 mm
|
| GROUND / ROAD CLEARANCE | 132 mm |
| CURB MASS | |
| SEAT HEIGHT | 769 mm |
| DRY WEIGHT | 107 kg |
