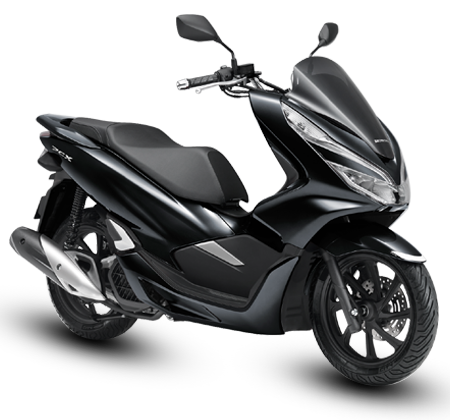

PCX150
Specifications
| Engine Specifications | |
|---|---|
| MAX POWER | 10.8 kW @ 8,500 rpm |
| MAX TORQUE | 13.6 N.m @ 6,500 rpm |
| ENGINE TYPE | 4-Stroke, Liquid-Cooled, SOHC |
| BORE X STROKE | 57.3 x 57.9 (mm) |
| ENGINE DISPLACEMENT | 150 cc |
| COMPRESSION RATIO | |
| FUEL SYSTEM | PGM-Fi |
| COOLING SYSTEM | |
| LUBRICATION | |
| STARTING | ACG Starter (Electric) |
| IGNITION SYSTEM | Full Transistorized |
| ENGINE OIL | |
| TRANSMISSION TYPE |
Automatic, V-Matic
|
| CLUTCH TYPE (PRIMARY) | |
| FUEL CONSUMPTION | |
| Chassis Specifications | |
|---|---|
| SUSPENSION (FRONT) | Telescopic |
| SUSPENSION (REAR) | Unit Swing |
| TIRE SIZE (FRONT) | 100/80-14 M/C 48P (Tubeless) |
| TIRE SIZE (REAR) | 120/70-14 M/C 61P (Tubeless) |
| BRAKES (FRONT) | Single Disc (ABS) |
| BRAKES (REAR) | Mechanical Leading Trailing |
| FUEL TANK CAPACITY | |
| Dimensions | |
| OVERALL LENGTH | 1,923 |
| OVERALL WIDTH | 745 |
| OVERALL HEIGHT | 1,107 |
| WHEELBASE |
1,313 mm
|
| GROUND / ROAD CLEARANCE | 137 mm |
| CURB MASS | |
| SEAT HEIGHT | 764 mm |
| CURB WEIGHT | 131 kg |
| SMART KEY SYSTEM | Equipped |
